Installers: Avoid Wind Creases by Setting Coroplast Flute Direction
For H-stake yard signs, run the coroplast flutes vertically so the stake’s wire legs slide cleanly into the hollow channels. The one common exception is side or pole mounting, where horizontal flutes resist bending and wrap-around better in gusty conditions. In both cases, the goal is the same: line up the flutes so the sign resists the direction it’s most likely to bend.
TL;DR:
- Vertical flute orientation is essential for H-stake signs to ensure the stake’s legs slide in easily and rainwater drains properly.
- Horizontal flutes are recommended for side or pole-mounted signs to resist bending from wind wrap-around forces.
- Flute orientation must match the mounting method because it determines the sign’s wind resistance and overall durability outdoors.
- Reinforcing attachment points with tape, backing strips, or grommets prolongs the sign’s lifespan by spreading stress across the flutes.
- Ordering from a reliable provider ensures correct flute orientation and minimizes errors, with most shipments within 24 hours for small orders.
Table of Contents
- Quick reference for flute orientation by mounting method
- Why flute orientation matters for strength and wind
- Mounting-specific guidance for stakes, poles, and ties
- Cutting and handling coroplast without wrecking it
- Material specs: how thickness and flute spacing affect your choice
- Quick pre-stake checklist before you order or install
- What installers get wrong about flute direction
- How a quality yard sign provider gets your flute orientation right the first time
- FAQ
- Sources
Quick reference for flute orientation by mounting method
Before you order or cut a single sheet, match the mounting method to the flute direction. This saves you from discovering a mismatch after the sign is already outdoors.
- Vertical flutes: the standard choice for H-stakes, since the channels line up with the stake legs and let them slide in cleanly.
- Horizontal flutes: better for side-mounted pole signs, where the load pushes against the face rather than up through the base.
- Either orientation works: for short-term indoor signage, table displays, or anything that won’t face wind or ground insertion.
If you’re mixing mounting methods across one order, say real estate signs on H-stakes and matching signs strapped to a fence, plan for two different flute orientations rather than forcing one setup to do both jobs.
Why flute orientation matters for strength and wind
Coroplast gets its rigidity from the hollow flutes sandwiched between two flat skins, and those flutes act like internal ribs. A sheet resists bending far better across the ribs than along them, which is why orientation changes how a sign performs outdoors, not just how it looks.
For H-stake use, you want the flutes running vertically so the open channels accept the stake’s legs and let rainwater drain downward instead of pooling inside the board. Practitioner consensus on sign forums notes that flutes should run perpendicular to the direction you most want to resist bending, whether that’s wind load or the twisting force of a stake.
Side-mounted signs face a different problem. Wind doesn’t just push the face, it wraps around the edges and tries to fold the sign like a hinge. Horizontal flutes resist that wrap because the ribs run across the direction of the bend instead of along it. Get the orientation backward on a pole-mounted sign and you’ll see a visible crease form along one flute line after a single windy week, a classic failure mode installers run into when they treat every sign the same way.
Mounting-specific guidance for stakes, poles, and ties
Different mounting hardware calls for different flute setups, and small adjustments at the attachment point make a real difference in how long a sign holds up.

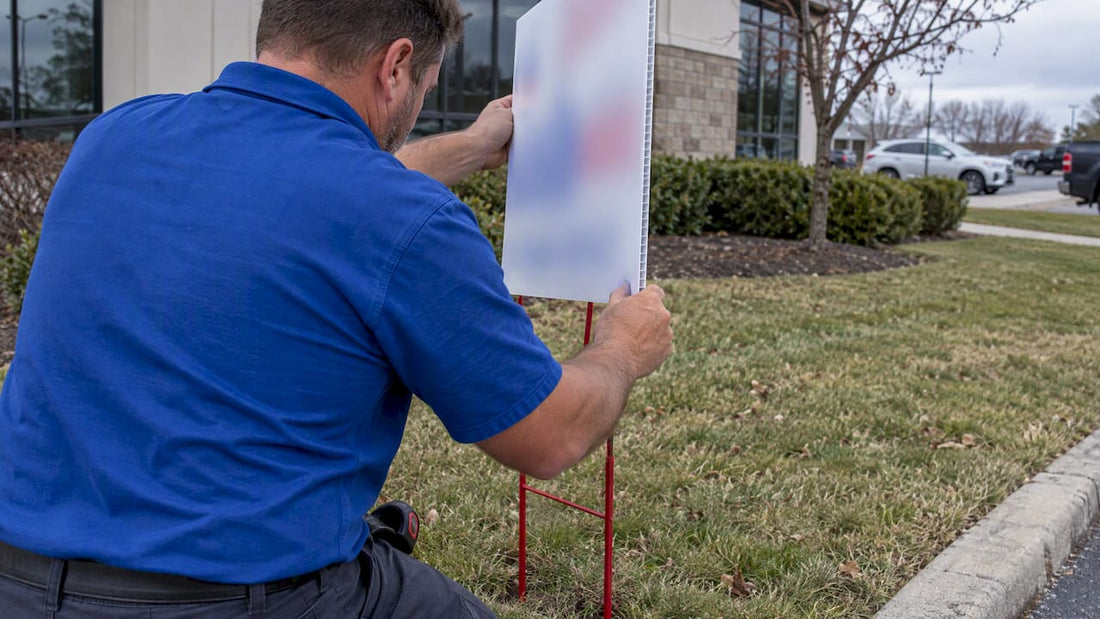

- H-stakes: keep flutes vertical and slide the stake’s wire arms directly into two open channels so the sign rides securely without flexing side to side.
- Pole or side mount: choose horizontal flutes, then fasten with screws or straps backed by a washer or small plastic plate so the fastener doesn’t tear through a single flute wall.
- Grommets and zip ties: flute direction matters less here, but reinforce each punched hole with a patch of tape or a grommet so repeated flexing doesn’t widen the hole into a tear.
Pro Tip: Add a short strip of corrugated plastic or rigid tape across the back at every attachment point that crosses the flutes; it spreads the load instead of concentrating stress on one channel wall.
Whatever the mounting method, leave a little drainage path at the bottom edge. Water trapped inside vertical flutes can freeze and expand in cold weather, which weakens the channel walls over a season of reuse.
Cutting and handling coroplast without wrecking it
Cutting along the flutes is far easier than cutting across them, and that single fact shapes most of the advice signmakers share with each other.
- For small runs, score a 4mm sheet three to five times with a sharp utility knife and metal ruler, then snap it along the line, a method confirmed by shop discussions on cutting multiple coroplast pieces.
- For higher volume, dedicated flute cutters, sawtrax knives, or shears keep cuts consistent across stacks of boards.
- For contour cuts or thicker material, a jigsaw, trim router, or a drag-knife and laser setup at a specialty shop gives a cleaner edge than hand scoring, a point echoed in forum advice on contour cutting coroplast.
Pro Tip: If you’re folding a sign for a tent-style display, score only the top skin and flutes while leaving the bottom skin intact. That uncut layer acts as a hinge and keeps the fold from splitting.
Cold weather makes polypropylene stiffer and more prone to cracking mid-cut, so handle and score coroplast at room temperature whenever you can. For production runs, a simple cutting jig or stacked-sheet setup keeps every piece identical, which matters more than it sounds once you’re past a few dozen signs. You can find more on coroplast’s layered construction in this explainer on what coroplast actually is.
Material specs: how thickness and flute spacing affect your choice
Most yard signs use 4mm coroplast, a thickness that balances cost, weight, and rigidity for temporary outdoor use. It’s thin enough to cut by hand and light enough for a single H-stake to hold upright, which is why it pairs naturally with vertical flute orientation in the first place.
Flute spacing and sheet thickness work together with orientation to determine how stiff the final board feels. A thicker board resists sag on its own, but orientation still decides which direction that stiffness points, so a well-oriented 4mm sheet can outperform a poorly oriented thicker one in real wind. If you’re placing signs somewhere exposed, a heavier board or added bracing is worth the extra cost. You can check how thickness affects handling weight in this guide to 4mm coroplast sheet weight, and see reinforced options built for gusty sites in this overview of high wind yard signs.
Quick pre-stake checklist before you order or install
Run through this list before you place an order or push a stake into the ground, especially if you’re ordering in bulk.
- Confirm your mounting method first, then choose vertical flutes for H-stakes or horizontal flutes for side and pole mounts.
- Stick with 4mm thickness for typical yard use, but size up if the site sees regular wind or storms.
- Decide whether you need pre-cut sizes from a vendor or plan to cut sheets yourself, since flute direction can’t be changed after the board is made.
- Add reinforcement, tape, backing strips, or grommets, anywhere a fastener crosses the flutes.
Skipping step three is the most common mistake, since flute orientation is set when the sheet is extruded and can’t be reversed once you have the board in hand.
What installers get wrong about flute direction
The mistake I see most often is treating every mounting method the same way, running vertical flutes on a side-mounted sign because that’s what the last batch used. The fix is almost always small: add a backing strip across the flutes, slip a washer under the screw, or flip the orientation entirely if you’re reusing old stock for a new mounting style. Before committing to a hundred signs, stake or mount just one and leave it outside for a few days first.
— YardSignGuy
How a quality yard sign provider gets your flute orientation right the first time
Ordering coroplast with the wrong flute direction is an easy mistake to make from a spec sheet, so a reliable yard sign provider builds correct orientation into every H-stake sign it produces, paired with 4mm material and an included metal H-stake ready to insert straight into the channels.
Most orders under 50 pieces ship within 24 hours, so you’re not stuck waiting days to find out your flute direction was wrong. Whether you need a handful of custom yard signs for a single property or a larger run through bulk yard signs, the orientation and stake setup are handled before the sign ever reaches your yard.
FAQ
What is the difference between B flute and C flute corrugated boxes?
B flute and C flute refer to cardboard box flute sizes rather than coroplast signage, with B flute being thinner and C flute slightly thicker and more cushioned. Coroplast used for yard signs uses a different, flattened flute profile designed for rigidity and weather resistance rather than cushioning.
How do you curve corrugated plastic?
Corrugated plastic bends most easily along the flutes, since the channels act like a built-in hinge line in that direction. Bending across the flutes is much harder and tends to crack the board, so curved or folded designs should follow the flute direction whenever possible.
What is the flute height in a corrugated box?
Flute height varies by flute grade in cardboard boxes and isn’t a standard spec for coroplast yard signs, which are instead sized by overall sheet thickness. Most yard signs use 4mm coroplast rather than a named flute height.
What is the best way to cut corrugated plastic signs?
For small runs, score a 4mm sheet three to five times with a sharp utility knife and metal ruler, then snap it along the line. For higher volume or contour cuts, flute cutters, shears, or a jigsaw and router setup deliver cleaner, more consistent results.
Does flute orientation affect how long a yard sign lasts outdoors?
Yes, matching flute orientation to the mounting method reduces bending and wrap-around stress, which helps the sign hold its shape through wind and repeated use. A mismatched orientation, like horizontal flutes on an H-stake sign, tends to flex and crease sooner.
